This is the main page for information about the sugnation PA sound system. This has been built up by myself over the period of a few years, which started out as a personal project and has turned into a slightly more commercial venture for me recently.

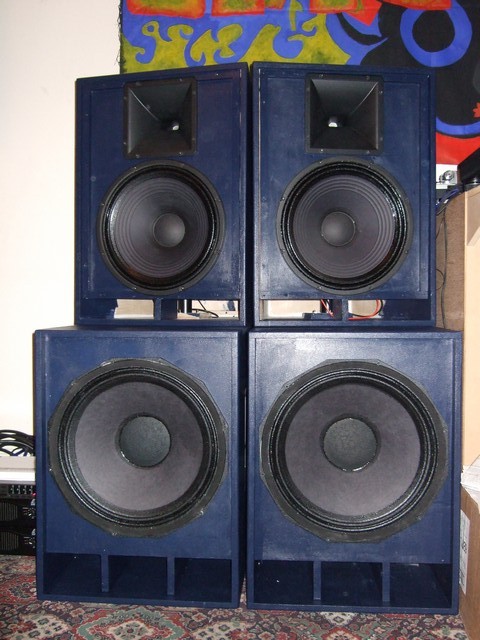

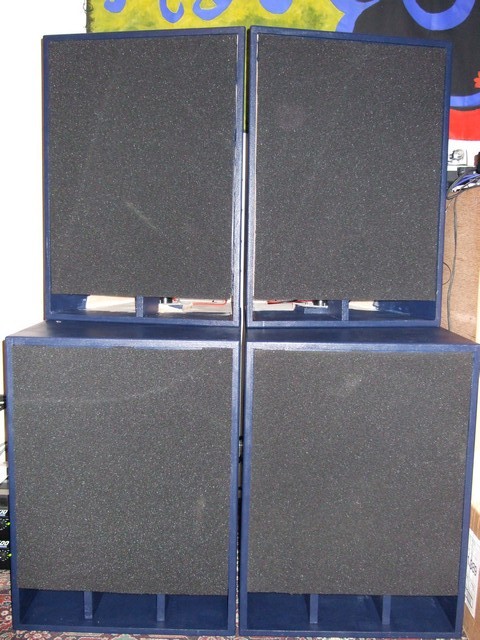

The system consists of a pair of mid top cabinets and a pair of reflex bass cabinets all made from 13 laminate birch ply and painted in 4 coats of Aldcroft speaker paint, which will deliver 3K of sound when fully driven.

Trapezoid-shaped cabs with a 1.4 inch compression driver on a 60 by 40 horn and a 15inch mid bass driver - the shape and dispersion of the cabinet makes for easy arraying in the majoirty of situations. (500W RMS per cab)

18inch reflex design tuned to 43Hz in a 190L box for clean, fast and punchy bass. (1000W per cab)

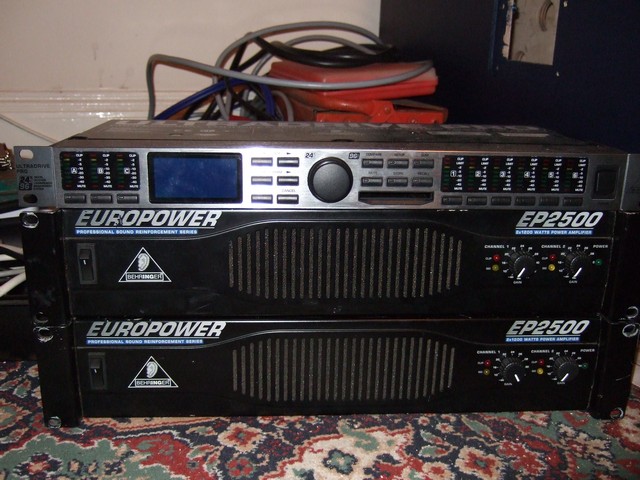

2 Beringher EP2500 amplifiers delivering 600W into 8ohms per channel, or 2500W bridged mono operation for bass duty

Beringher DCX2496 digital crossover/limiter

• Box tree (Strawberry fair caberet all day gig)
• The Punter pub (Strawberry Fair charity gig)
• The Red Cow pub (30th birthday party)
• Riverboat Georgina (NE-Xcuse and Bleep/Priory boat parties)
• St Andrews Church (childs daytime dance playgroup)
• Various other house and tunnel parties

The rig is available for hire at the following rates:

Item	Price/day
Mid tops + 1 amp	75
Mid tops + bass bins + 2 amps	150
Technics 1200s + 2 ch mixer	40
Pioneer CDJ100s + 2 ch mixer	40

Rates are negotiable for certain events such as charity gigs etc.
